Visualizing Boiling Point with Thermal Imaging

By Charles Xie

Back to Telelab home page

The boiling point of a substance is the temperature at which the vapor pressure of its liquid form equals the external pressure and the liquid transforms into a vapor. This process requires the input of latent heat to overcome the intermolecular forces in the liquid state. As a result, the liquid will stay at a constant temperature during the phase transition.

We published a few experiments about boiling point through Telelab. These experiments are easy to conduct anywhere, but users can conveniently explore them with the rich data that we provided. Note that the FLIR ONE Pro thermal camera we used does not seem to be able to detect temperature above 150°C in our case, despite the -20-400°C range promised in the specs.

Visualizing the Boiling Point of Water

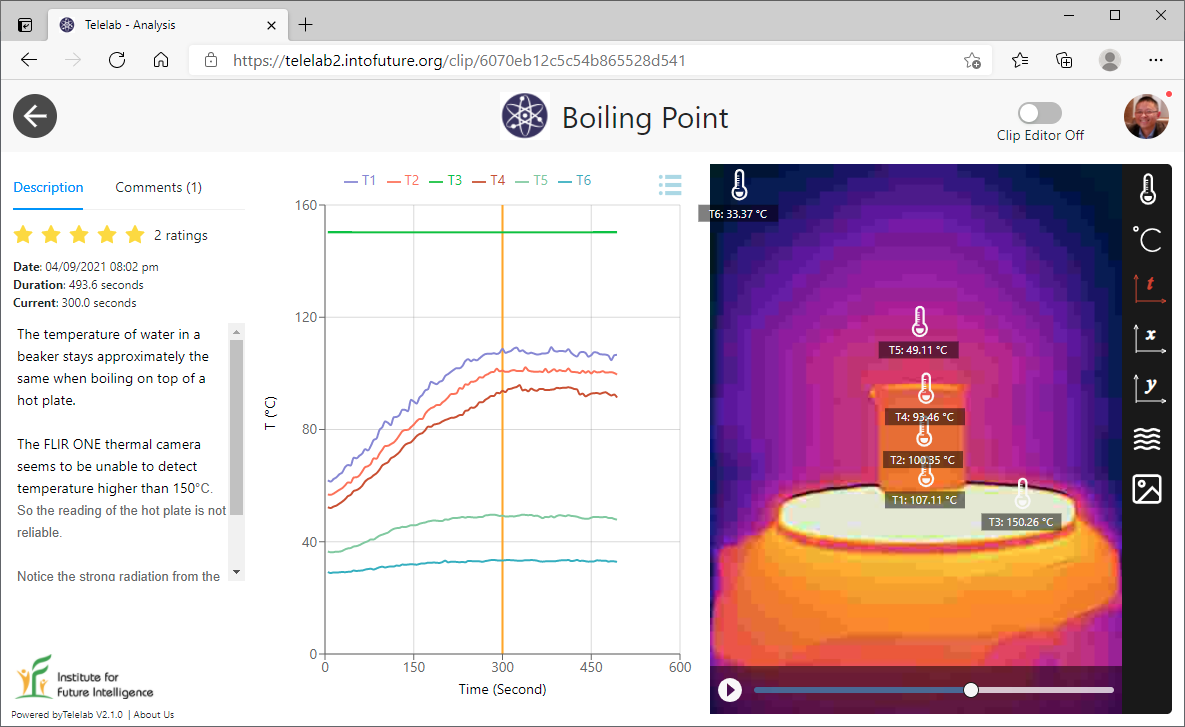

In the first experiment, we filled up a beaker with water and put it on a hot plate. We then measured the surface temperatures of the beaker. It is interesting to note the gradient of the surface temperature — the closer to the hot plate, the hotter the surface. The middle of the surface wall of the beaker may best represent the temperature of water.

Temperatures did not continue to increase while the water was boiling.

Click HERE to access this experiment

Visualizing the Effect of Boiling Point Elevation

In the second experiment, we filled two identical beakers with the same amount of water and then added some salt to one of them. When heated on a hot plate, the phenomenon of boiling point elevation was visualized.

Adding salt to water increases the boiling point.

Click HERE to access this experiment

Comparing the Boiling Points of Water and Isopropyl Alcohol

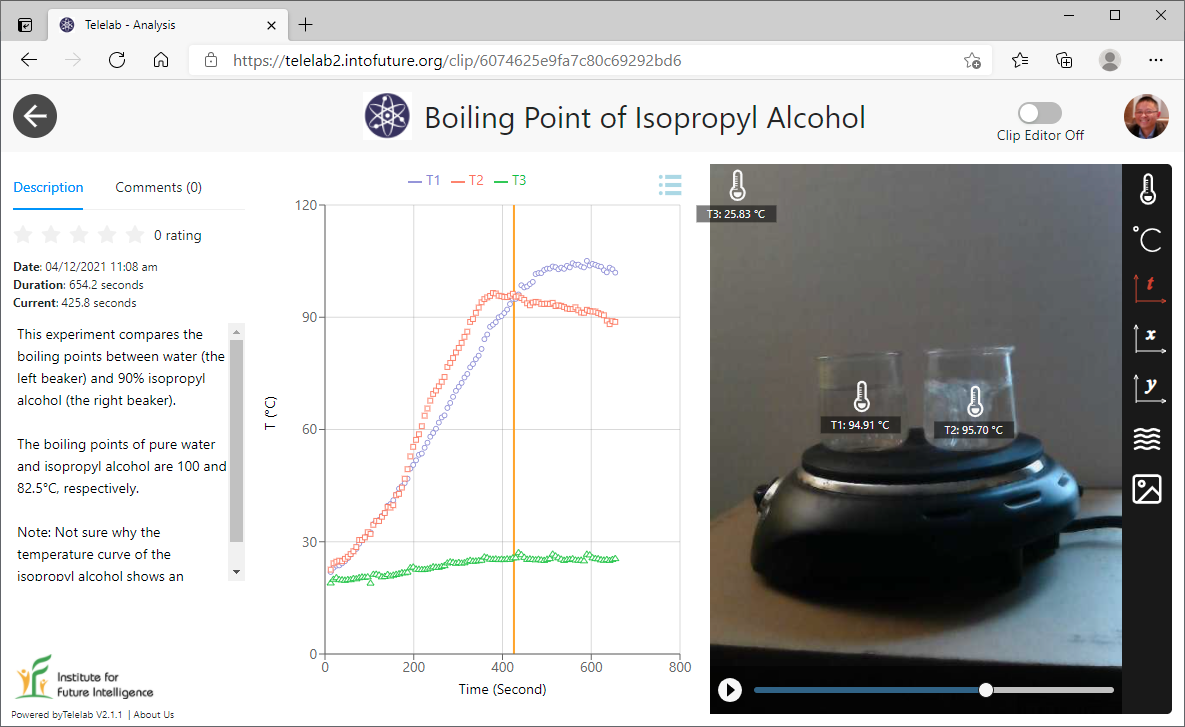

In the third experiment, we filled two identical beakers with the same amount of water and isopropyl alcohol (90%). And then we heated them up on a hot plate to observe the difference in their boiling points. Isopropyl alcohol (rubbing alcohol) is a highly volatile substance that evaporates much more quickly than water, especially when boiled.

Isopropyl alcohol has a lower boiling point than water.

Click HERE to access this experiment
